Presence Detection 2.0: mmWave Radars (LD2410/LD2450) in Lighting Automation

Presence Detection 2.0: mmWave Radars (LD2410/LD2450) in Lighting Automation

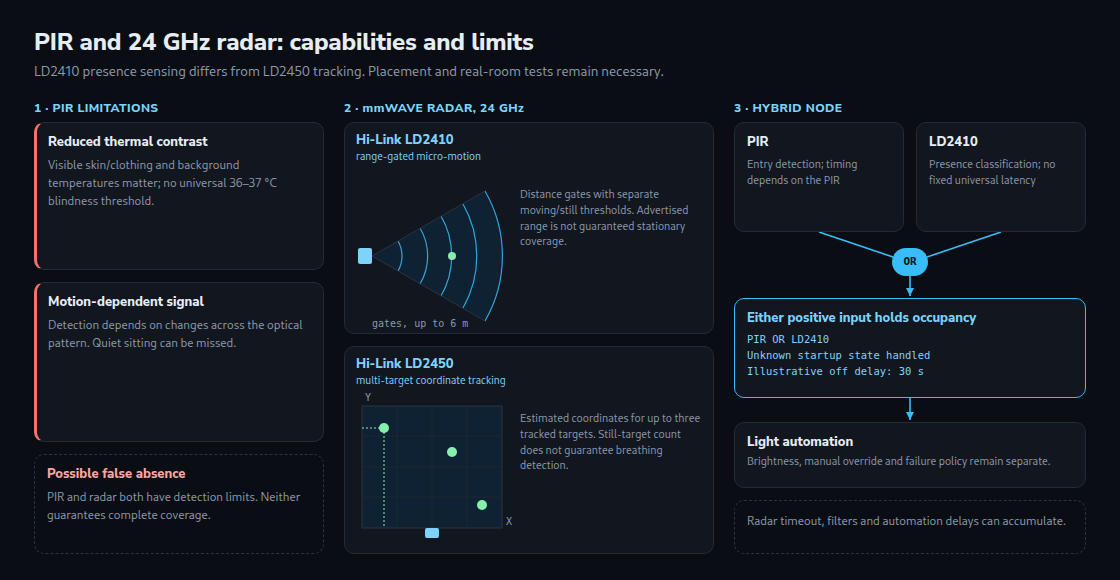

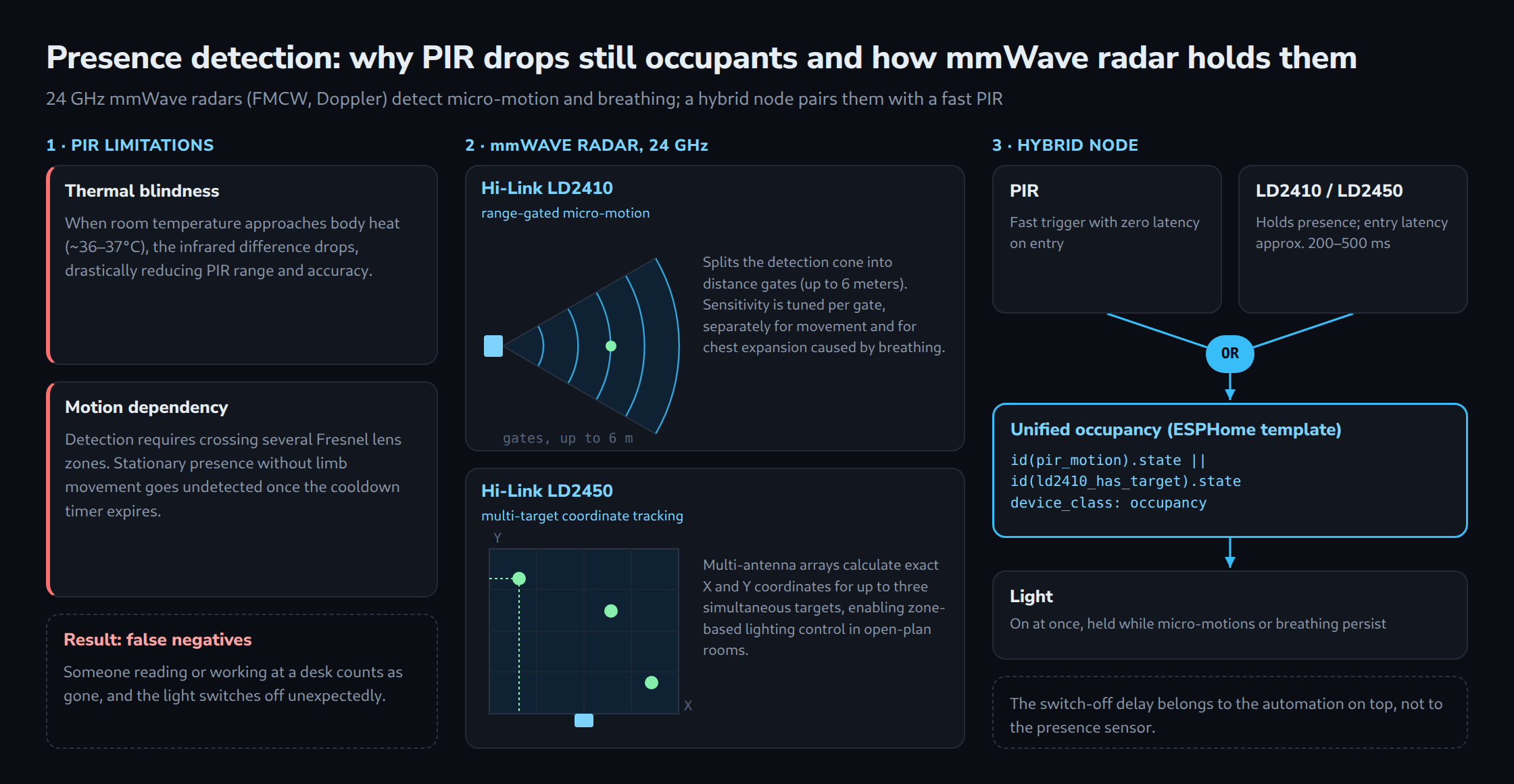

A light that switches off during reading usually exposes a mismatch between motion detection and occupancy detection. PIR sensors respond to changing infrared patterns; radar can detect smaller movements. Combining both can improve lighting control, but neither technology guarantees complete coverage. The LD2410 and LD2450 also serve different purposes.

PIR: movement and thermal contrast

A PIR sensor detects changes in infrared radiation across its optical detection pattern. Walking across that pattern is often easier to detect than sitting still or approaching directly. Lens design, mounting height, movement and the temperature difference between visible surfaces and the background affect detection.

The relevant contrast is not simply room temperature versus a universal body-core temperature of 36–37 °C. Clothing and exposed skin have different surface temperatures. Reduced contrast can reduce sensitivity; no universal “thermal blindness” temperature follows. A PIR output also has sensor-specific timing, so immediate or zero-latency switching is not guaranteed.

LD2410 and LD2450: different detection tasks

Both families use 24 GHz radar, often marketed as mmWave. At 24 GHz the wavelength is about 12.5 mm; strictly, the conventional millimeter-wave band starts at 30 GHz. The practical choice depends more on the sensor’s processing and firmware than on that label.

LD2410: the presence sensor distinguishes moving and still targets using distance gates. Separate thresholds can reduce unwanted detections in particular distance ranges. The advertised range of up to roughly six metres does not guarantee detection of a nearly motionless person at every distance or angle. Still-target output is a presence classification, not a medical breathing measurement.

LD2450: the tracking module reports estimated coordinates and speeds for up to three targets. Coordinates support zones, but are neither exact positions nor persistent personal identities. The module is primarily designed for moving-target tracking. ESPHome exposes still-target counts too; that label does not establish reliable detection of breathing or complete immobility. Firmware and actual seating positions need testing before choosing the module to keep desk lighting on.

An ESPHome example with the missing connections included

This fragment is for an ESP32 board with GPIO16/17 available for UART and GPIO14 available for PIR. Board selection, network/API configuration and the light automation belong in the surrounding ESPHome configuration. Radar TX connects to ESP RX, radar RX to ESP TX, with a common ground. Supply voltage, current capacity and logic levels must match the exact module; a 5 V output must not connect directly to a 3.3 V GPIO.

uart:
  id: radar_uart
  tx_pin: GPIO17
  rx_pin: GPIO16
  baud_rate: 256000
  parity: NONE
  stop_bits: 1

ld2410:
  id: room_radar
  uart_id: radar_uart

binary_sensor:
  - platform: gpio
    pin: GPIO14
    name: "Room PIR Motion"
    id: pir_motion

  - platform: ld2410
    ld2410_id: room_radar
    has_target:
      name: "Room Radar Presence"
      id: radar_presence

  - platform: template
    name: "Room Unified Occupancy"
    device_class: occupancy
    lambda: |-
      if (id(pir_motion).has_state() && id(pir_motion).state)
        return true;
      if (id(radar_presence).has_state() && id(radar_presence).state)
        return true;
      if (!id(pir_motion).has_state() || !id(radar_presence).has_state())
        return {};
      return false;
    filters:
      - delayed_off: 30s

The LD2410’s standard UART setting is 256000 baud, no parity and one stop bit. A previously changed module baud rate must match the configuration. The two inputs are combined with OR; either positive reading maintains occupancy. Before both inputs have a known state, an absent reading does not automatically become “empty”. The lambda’s empty return retains the last state; it is not a communication watchdog.

The illustrative 30-second off delay begins when both known inputs are false. Radar timeout, PIR hold time, this filter and any Home Assistant delay can accumulate. The example creates an occupancy sensor only; brightness thresholds, manual override and the actual light action remain separate.
