GA4 Consent Mode v2: The gcd Parameter, CMP Race Conditions and Server-Side Debugging

GA4 Consent Mode v2: Decoding the gcd Parameter (A Network Request Deep Dive)

In modern digital analytics architectures, verifying privacy compliance requires more than inspecting whether a cookie consent banner is displayed. While the standard gcs parameter in Google Analytics 4 (GA4) network requests provides a basic overview of consent (such as g110 or g111), it lacks granular visibility into the underlying state machine. The true complexity of Google Consent Mode v2 is encoded within the cryptic gcd parameter (e.g., 11r1r1r1r5).

This technical deep dive breaks down the bit-logic of the gcd string, explains methods for debugging consent signals in Server-Side Google Tag Manager (ssGTM), and demonstrates how to identify race conditions between Consent Management Platforms (such as Usercentrics) and the initial pageview.

1. The Anatomy of the gcd Parameter

Unlike gcs, which only reports whether advertising or analytics storage is granted or denied, the gcd parameter reveals the complete lifecycle of each consent signal. It indicates whether a parameter was set by a default command, updated by a user action, or left unconfigured.

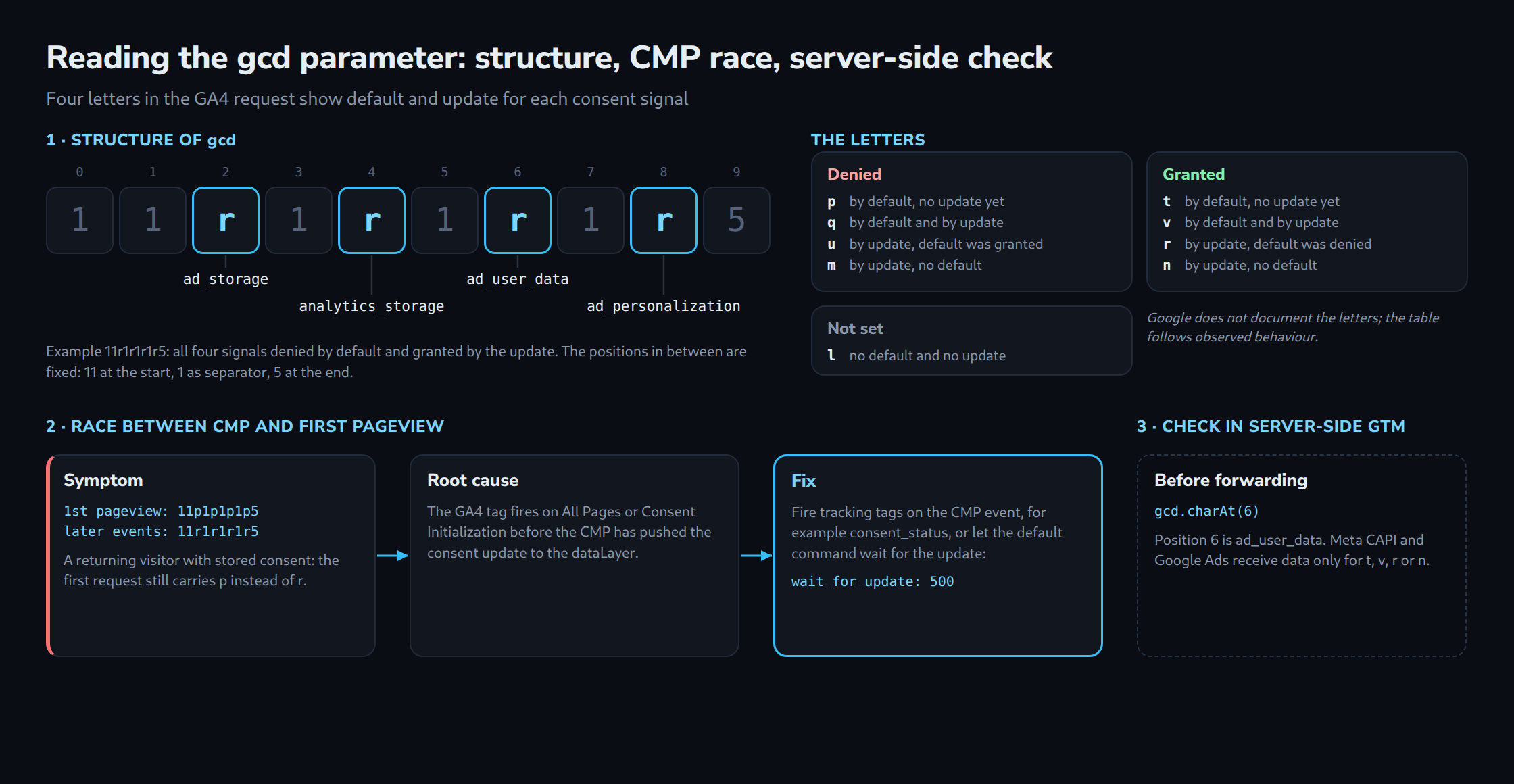

A typical gcd parameter string follows a structured pattern: 11<ad_storage>1<analytics_storage>1<ad_user_data>1<ad_personalization>5

For example, the value gcd=11p1p1p1p5 translates to a strict initial state in which all four consent parameters (ad_storage, analytics_storage, ad_user_data, ad_personalization) are denied by default and no update has arrived yet (p). Conversely, gcd=11r1r1r1r5 confirms that an update event has successfully fired, switching all four signals from the denied default to granted (r). A string made up of v codes describes a different case again: granted already at the default stage and confirmed as granted by the update.

2. Identifying CMP Race Conditions

A common architectural failure in web analytics is a race condition between the CMP (e.g., Usercentrics) and the firing of the first GA4 configuration tag. If a returning user with stored consent visits a page, but the network request contains p codes instead of r codes, the tracking tag executed before the CMP could push the consent update to the DataLayer.

• Symptom: First pageview request carries gcd=11p1p1p1p5 (default denied, no update yet), while subsequent events carry gcd=11r1r1r1r5 (default denied, update granted).
• Root Cause: The GA4 tag triggers on standard All Pages (Page View) or Consent Initialization without waiting for asynchronous CMP state resolution.
• Architectural Fix: Configure standard tracking tags to fire strictly on custom CMP events (such as consent_status) or utilize the wait_for_update parameter with a 500ms threshold in the default consent snippet.

3. Server-Side GTM Debugging & Validation

In Server-Side Google Tag Manager (ssGTM), incoming GA4 HTTP requests serve as the carrier for all downstream tags, including Meta Conversions API (CAPI) and Google Ads Conversion Tracking. Inspecting the gcd parameter within the ssGTM Preview Mode is critical to prevent non-compliant data forwarding.

// Example: Custom Variable logic in ssGTM to check the ad_user_data state
// Structure: 11<ad_storage>1<analytics_storage>1<ad_user_data>1<ad_personalization>5
// ad_user_data therefore sits at index 6; index 7 is the fixed separator "1"
const gcd = getRequestQueryParameter("gcd");
const adUserData = gcd ? gcd.charAt(6) : "";
// Granted codes: t (default), v (default and update), r (denied by default, granted by update), n (no default, granted by update)
if (adUserData === "t" || adUserData === "v" || adUserData === "r" || adUserData === "n") {
  return true; // ad_user_data is granted
}
return false;

By enforcing server-side trigger rules based on the decoded gcd state, data pipelines remain fully compliant with GDPR and the Digital Markets Act (DMA), ensuring zero marketing payloads are dispatched when consent remains in a default denied state.
