PolskiAutomated Data Quality Alerts for GA4 with Looker Studio & BigQuery
Contents
- 1. Architectural Framework: Statistical Anomaly Detection
- 2. Step-by-Step BigQuery Anomaly Detection SQL
- 3. Step-by-Step Scheduling and Staging Table Configuration
- 4. Step-by-Step Looker Studio Dashboard & Alert Setup
- 5. Summary & Architectural Value
- Questions and answers
- Sources
- Practical check: a weekday baseline without the inspected day
Silent data loss is one of the most critical operational risks in digital analytics. When Google Analytics 4 (GA4) tracking scripts break due to website deployments, Consent Management Platform (CMP) misconfigurations, or server-side endpoint failures, data pipelines can drop key conversion events without generating visible application errors. Implementing an automated data quality alerting system using Google BigQuery and Looker Studio enables data engineering teams to continuously monitor conversion volumes, traffic baselines, and parameter integrity—triggering instant notifications whenever metrics deviate from statistical norms.
1. Architectural Framework: Statistical Anomaly Detection

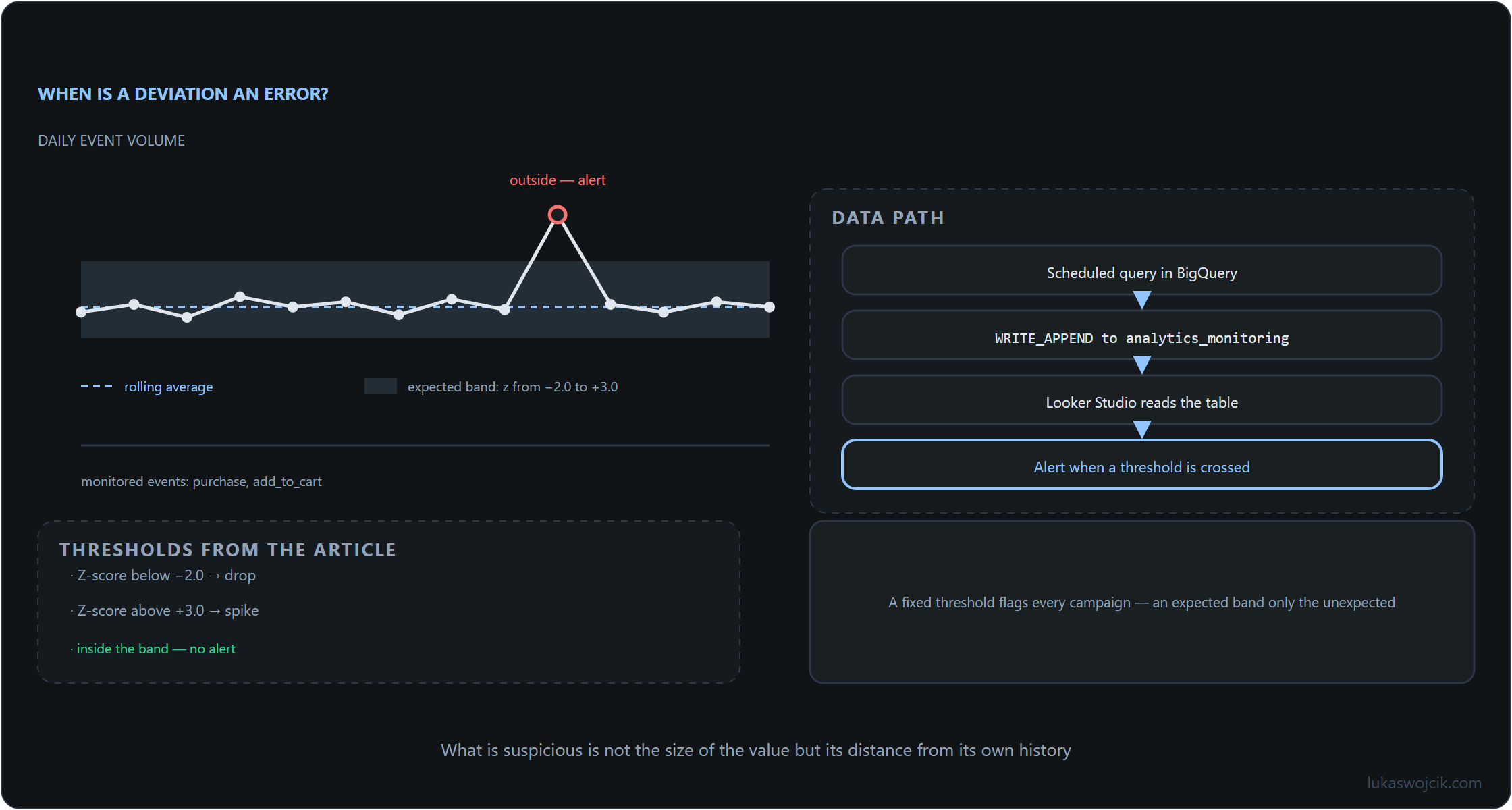

Traditional static threshold alerts fail in e-commerce environments because traffic naturally fluctuates between weekdays and weekends. A robust alerting architecture relies on statistical baseline modeling:
- BigQuery Historical Baseline: A scheduled SQL query calculates the 14-day rolling average and standard deviation for key event metrics (such as
purchase,add_to_cart, and total sessions). - Z-Score Anomaly Scoring: The system computes a Z-score for the current daily volume. A Z-score below
-2.0or above+3.0flags a statistically significant anomaly (e.g., an unexpected 60% drop in checkout completions). - Looker Studio Pro & Cloud Monitoring Delivery: Staged anomaly tables are visualized in Looker Studio dashboards and linked to automated alert schedules or PagerDuty / Slack webhooks via Google Cloud Monitoring.
2. Step-by-Step BigQuery Anomaly Detection SQL
To detect tracking failures automatically, the following production-grade SQL script must be executed daily within Google BigQuery to evaluate GA4 event streams against statistical baselines:
WITH counted_events AS (
SELECT
PARSE_DATE('%Y%m%d', event_date) AS metric_date,
event_name,
COUNT(*) AS event_count
FROM
`project_id.analytics_XXXXXXXXX.events_*`
WHERE
_TABLE_SUFFIX BETWEEN FORMAT_DATE('%Y%m%d', DATE_SUB(CURRENT_DATE(), INTERVAL 16 DAY))
AND FORMAT_DATE('%Y%m%d', DATE_SUB(CURRENT_DATE(), INTERVAL 1 DAY))
AND event_name IN ('purchase', 'add_to_cart', 'begin_checkout', 'session_start')
GROUP BY
metric_date,
event_name
),
daily_event_volumes AS (
SELECT
d AS metric_date,
n AS event_name,
COALESCE(event_count, 0) AS event_count
FROM
UNNEST(GENERATE_DATE_ARRAY(DATE_SUB(CURRENT_DATE(), INTERVAL 16 DAY),
DATE_SUB(CURRENT_DATE(), INTERVAL 1 DAY))) AS d
CROSS JOIN UNNEST(['purchase', 'add_to_cart', 'begin_checkout', 'session_start']) AS n
LEFT JOIN counted_events AS c
ON c.metric_date = d AND c.event_name = n
),
baseline_stats AS (
SELECT
metric_date,
event_name,
event_count,
AVG(event_count) OVER(
PARTITION BY event_name
ORDER BY metric_date
ROWS BETWEEN 14 PRECEDING AND 1 PRECEDING
) AS rolling_avg_14d,
STDDEV(event_count) OVER(
PARTITION BY event_name
ORDER BY metric_date
ROWS BETWEEN 14 PRECEDING AND 1 PRECEDING
) AS rolling_stddev_14d
FROM
daily_event_volumes
)
SELECT
metric_date,
event_name,
event_count,
ROUND(rolling_avg_14d, 1) AS expected_avg,
ROUND(
CASE
WHEN rolling_stddev_14d = 0 THEN 0
ELSE (event_count - rolling_avg_14d) / rolling_stddev_14d
END, 2
) AS z_score,
CASE
WHEN rolling_stddev_14d > 0 AND ((event_count - rolling_avg_14d) / rolling_stddev_14d) < -2.0 THEN 'CRITICAL_DROP'
WHEN rolling_stddev_14d > 0 AND ((event_count - rolling_avg_14d) / rolling_stddev_14d) > 3.0 THEN 'UNEXPECTED_SPIKE'
ELSE 'NORMAL'
END AS quality_status
FROM
baseline_stats
WHERE
metric_date = DATE_SUB(CURRENT_DATE(), INTERVAL 1 DAY)
ORDER BY
z_score ASC;3. Step-by-Step Scheduling and Staging Table Configuration
To ensure uninterrupted monitoring without manual query execution, the anomaly detection SQL must be scheduled:
- Create a Staging Dataset: In BigQuery, create a dedicated monitoring dataset named
analytics_monitoring. - Configure a Scheduled Query: Open BigQuery, paste the anomaly detection SQL, and select
Schedule > Create Scheduled Query. - Define Execution Timing: Schedule the query to execute daily at 05:30 UTC, ensuring GA4 intraday processing is completed.
- Destination Table Mapping: Set the destination table to
analytics_monitoring.ga4_data_quality_alertsand configure the write preference toWRITE_APPENDto preserve a permanent historical audit trail of data quality scores.
4. Step-by-Step Looker Studio Dashboard & Alert Setup
Once the BigQuery staging table is operational, visual dashboards and automated alerting rules must be established:
- Connect BigQuery to Looker Studio: Add the BigQuery table
analytics_monitoring.ga4_data_quality_alertsas a primary data source in a new Looker Studio report. - Build the Quality Control Scorecard: Add a time-series chart displaying
event_countagainstexpected_avg, accompanied by conditional formatting on thequality_statusdimension (highlightingCRITICAL_DROPin red). - Configure Looker Studio Pro Alerts: If Looker Studio Pro is available, create a conditional schedule that triggers an automated email or Google Chat dispatch whenever a table row evaluates to
quality_status = 'CRITICAL_DROP'. - Alternative Webhook Delivery via Cloud Monitoring: For standard Looker Studio setups, connect Google Cloud Monitoring to the scheduled BigQuery log metric. Define an alert policy that dispatches immediate PagerDuty or Slack notifications whenever the Z-score drops below
-2.0.
5. Summary & Architectural Value
What this tutorial achieves: The successful deployment of an automated statistical anomaly detection pipeline in Google BigQuery and Looker Studio that monitors GA4 event volumes against 14-day rolling Z-score baselines.
Resulting value: Analytics and digital marketing teams achieve complete observability over data collection pipelines. Silent tracking breaks caused by broken website deployments, GTM container misconfigurations, or consent popup failures are detected and flagged within hours rather than days. Consequently, budget allocation and algorithmic conversion optimization remain protected against distorted, incomplete analytics datasets.
Questions and answers
Why does the query need a calendar grid to report a complete outage of an event as CRITICAL_DROP?
Because a day without events produces no row. COUNT(*) with GROUP BY only returns the combinations of date and event name that occur in the data. If purchase did not fire even once on the previous day, without the grid the row for that day is missing, the final WHERE condition finds nothing, and instead of CRITICAL_DROP the destination table receives nothing at all. The most severe case would be precisely the one that stays silent.
Without the grid, the same fact also shifts the baseline. ROWS BETWEEN 14 PRECEDING AND 1 PRECEDING counts rows, not days: if a day is missing, the window reaches one day further back, and the zero day enters neither the average nor the standard deviation.
The calendar in the daily_event_volumes step fixes this. UNNEST(GENERATE_DATE_ARRAY(...)) produces every day in the range, a CROSS JOIN with the four monitored event names turns it into the complete grid, and the counts are attached with a LEFT JOIN, missing values set to zero with COALESCE(event_count, 0). With this grid the query also reports a missing daily table as a drop to zero; whether a tracking failure or a late export lies behind it is then visible in the dataset’s table list.
Why does the property’s time zone matter for the 05:30 UTC schedule?
Because event_date is recorded in the property’s reporting time zone, while CURRENT_DATE() without an argument works in UTC. For a property in North America, the previous day has only just ended at 05:30 UTC, and on the West Coast it has not even finished; the query then evaluates an incomplete or still missing day. The fix is CURRENT_DATE() with the property’s time zone as its argument, such as CURRENT_DATE('America/Los_Angeles'), and a schedule that runs only after that time zone’s day has ended and the export has arrived.
Does the rolling 14-day average account for the difference between weekdays and weekends?
Only indirectly. Two weeks contain every weekday twice, so the average and the standard deviation mix strong and weak days. The weekly rhythm ends up in the standard deviation and widens the band: a genuine drop on a strong day stands out less, and a Sunday that is regularly weak already sits below the average without any fault, and therefore closer to the −2.0 threshold.
A baseline built from the same weekday is more precise, for instance with PARTITION BY event_name, EXTRACT(DAYOFWEEK FROM metric_date). The query’s 16 days, however, leave only two comparison values per weekday, too few for a standard deviation; the range has to grow to several weeks: for eight comparison values, to 56 days before the day being checked. The extra cost stays small, because the query reads only the event_date and event_name columns from the daily tables.
Practical check: a weekday baseline without the inspected day

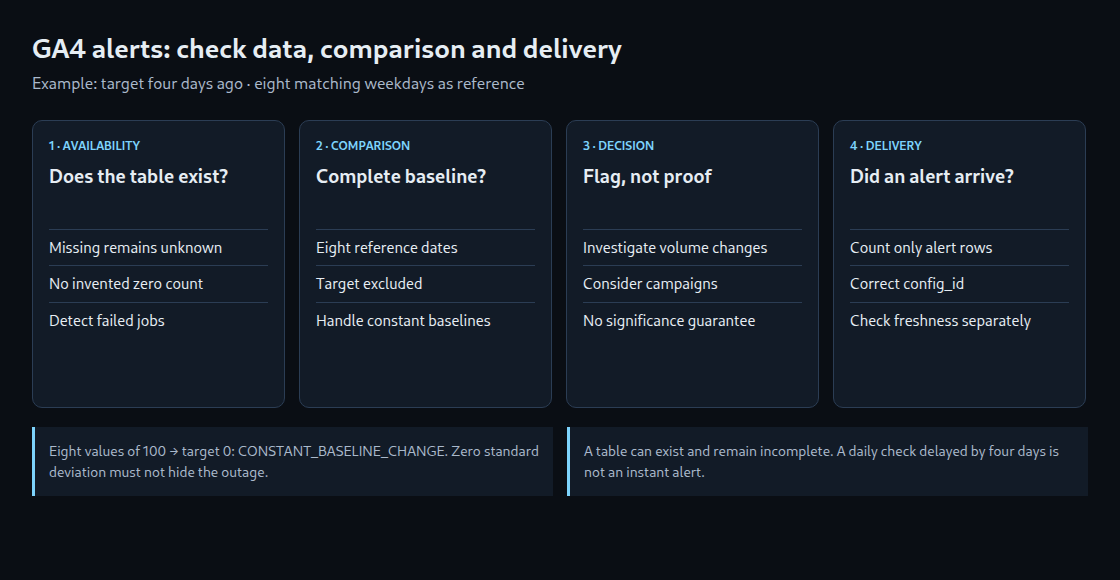

The GA4 Anomaly Detector now compares a selected reporting day with the same weekday from each of the eight previous weeks. A Thursday is compared with eight Thursdays. The inspected day is excluded from the reference mean and sample standard deviation, so a sharp drop cannot pull its own baseline down.
The tool reads sessions, total users, page/screen views, key events, event count, total revenue and engagement rate through the read-only Data API. The default date is four days ago to leave time for processing, but that delay does not certify that the report is complete. The property’s reporting timezone and the returned metadata remain relevant.
- Select a completed day and inspect the eight reference dates shown in the result.
- If a required date is absent from the response, the comparison is withheld. Missing rows are not silently replaced with zeros; a reported zero remains zero.
- Review the descriptive z-score against the chosen threshold. With a constant baseline, the tool reports either no change or a change from that constant value, without dividing by zero.
- Download the nine comparison dates as CSV and compare any flagged change with releases, campaigns, holidays and other evidence.
Eight observations are a small reference set. These flags are not calibrated significance tests, and seven concurrent metric checks can generate chance findings. Weekday matching does not remove trends, special events, consent changes or processing delays. No flag proves complete tracking, and a flag does not establish the cause. This is a manual investigation tool, not a scheduled alert service.
Sources: Google runReport reference, metric definitions and NIST guidance on outlier detection and its assumptions.
